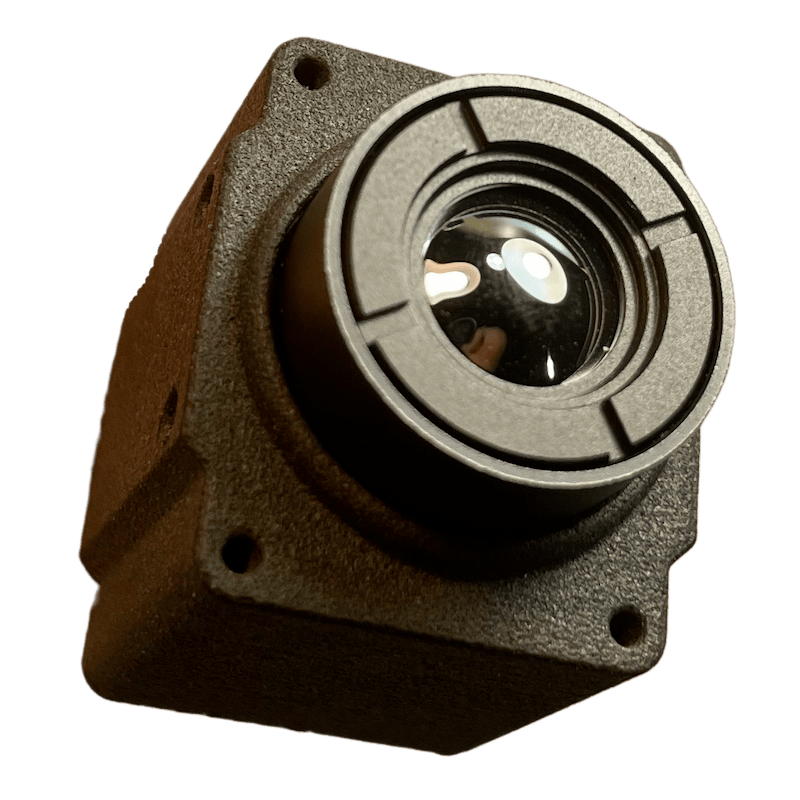

Camera Specification
|
Sensor Type |
Uncooled VoX |
|
Pixel Pitch |
12 μm |
|
Resolution |
640×512 pixels |
|
Wavelength Range |
8 ~ 14μm |
|
NETD (Thermal Sensitivity) |
<40 mk (at 25℃, F/1.0) |
|
Frame Rate |
25 Hz |
|
Response Time |
~80 ms |
|
Non-Uniformity Correction (NUC) |
Automatic shutter |
|
Field of View (FoV) |
48.7°×38.6° |
|
Output Interface |
Analog CVBS; |
|
Input Voltage |
5 V |
|
Operating Temperature Range |
-40°C to +80°C |
|
Dimensions |
32,5 × 28,5 × 34 mm |
|
Weight |
35 g |
*The USB interface is currently in testing and is supplied “as-is.” To obtain official integration support, please submit a request, which we will process on a first-come, first-served basis, or connect it yourself using the instructions.
Package Contents
- 1× Thermal Imaging Camera
- 1× Connector Cable
Camera Configurations with Alternative Lenses (on request)
The option to install an alternative lens is available only upon individual request. The cost of the camera with the lenses listed in the table below may differ from the base price due to limited production volume. Manufacturing lead time is to be agreed individually.
| Focal Length | Aperture | Field of View (FoV) | Recognition / Identification** | Weight |
| 4.1 mm | F1.2 | 103.65° × 84.24° | 0.1 km / 0.05 km | 27 g |
| 9.1 mm* | F1.0 | 48.7° × 38.6° | 0.25 km / 0.17 km | 35 g |
| 13 mm | F1.0 | 31.9° × 25.7° | 0.37 km / 0.19 km | 23.2 g |
| 18 mm | F1.1 | 24.2° × 19.5° | 0.50 km / 0.25 km | 33 g |
| 25 mm | F1.0 | 17.5° × 14.0° | 0.70 km / 0.35 km | 75 g |
| 35 mm | F1.0 | 12.5° × 10.0° | 0.97 km / 0.49 km | 119 g |
| 55 mm | F1.0 | 8.0° × 6.4° | 1.50 km / 0.76 km | 199 g |
*Standard camera configuration.
**Recognition and identification range values are provided for standard meteorological conditions. Calculations are based on a “human” target (dimensions: 1.8 × 0.5 × 0.3 m).
