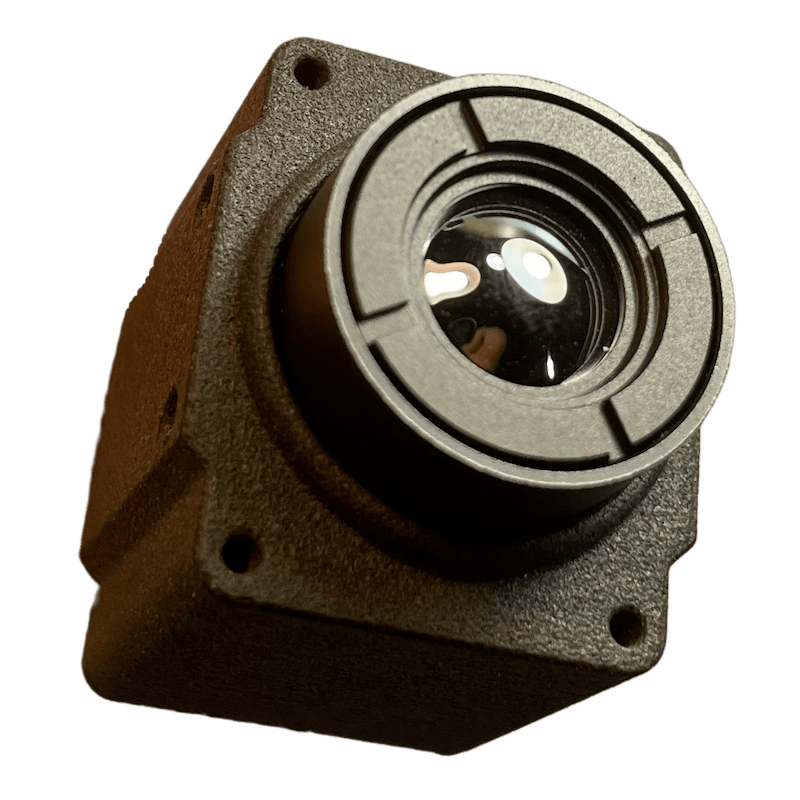

Kurbas-640 (alpha): USB connection

The camera has been confirmed to work with Raspberry Pi 5, Raspberry Pi Zero 2 W and Orange Pi 5.

Connection Diagram

1. Solder the USB cable to the camera harness according to the pinout:


   Camera wire	USB wire	Signal
   Red	Red	Power Positive
   Black	Black	Power Negative
   Green	Green	USB_2.0_DP
   White	White	USB_2.0_DM



2. Insert the cable into the USB connector on the board.


3. Checking the Camera in the Console

• Install the required utilities

  sudo apt update && sudo apt install -y v4l-utils ffmpeg


• Verify that the camera is detected.
  Run the command below and look for a block whose name in parentheses starts with usb-… — this is your USB camera.
  The first line under that block (usually /dev/video0) is the video node you should use.
  If no such block appears, the system did not recognise the camera; check the cable, power supply, or reconnect the device.

  v4l2-ctl --list-device


• Display the camera image

ffplay -f v4l2 -video_size 640x512 -i /dev/video0

Additional Check via Python + OpenCV

• Install the required packages

  sudo apt update
sudo apt install -y python3-opencv python3-numpy v4l-utils


• Verify that the camera is detected.
  Run the command below and look for a block whose name in parentheses starts with usb-… — this is your USB camera.
  The first line under that block (usually /dev/video0) is the video node you should use.
  If no such block appears, the system did not recognise the camera; check the cable, power supply, or reconnect the device.

  v4l2-ctl --list-devices


• Go to your home directory

  cd ~


• Create a test file

  nano test.py


• Paste the following code:



  import cv2
import time

  DEVICE = "/dev/video0"          # замініть, якщо іншій нод
WIDTH, HEIGHT = 640, 512

  cap = cv2.VideoCapture(DEVICE, cv2.CAP_V4L2)
cap.set(cv2.CAP_PROP_FRAME_WIDTH,  WIDTH)
cap.set(cv2.CAP_PROP_FRAME_HEIGHT, HEIGHT)

  if not cap.isOpened():
    raise IOError(f"Не вдалося відкрити {DEVICE}")

  print("Натисніть 'q' для виходу")
t0, frames = time.time(), 0
while True:
    ret, frame = cap.read()
    if not ret:
        print("Кадр не зчитано"); break
    cv2.imshow("UVC 640×512", frame)
    frames += 1
    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

  print(f"Середній FPS: {frames / (time.time() - t0):.1f}")
cap.release()
cv2.destroyAllWindows()



• Save code → Ctrl + O, Enter, вийдіть → Ctrl + X.


• Run the file

  python3 test.py
