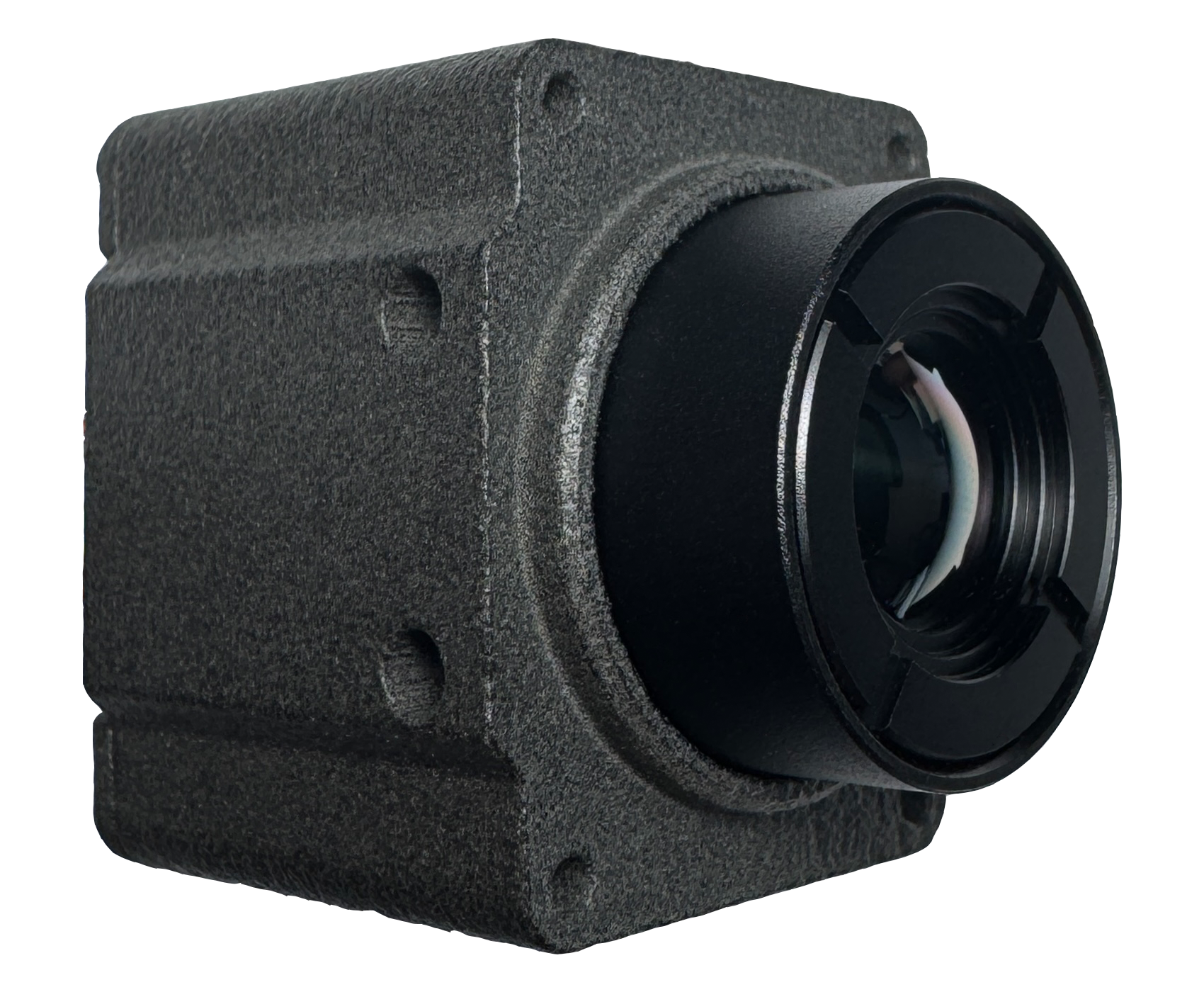

Camera Specification
|
Sensor Type |
Uncooled VoX |
|
Pixel Pitch |
12 μm |
|
Resolution |
384×288 pixels |
|
Wavelength Range |
8 ~ 14μm |
|
NETD (Thermal Sensitivity) |
<40 mk (at 25℃, F/1.0) |
|
Frame Rate |
30 Hz |
|
Response Time |
~80 ms |
|
Non-Uniformity Correction (NUC) |
Automatic shutter |
|
Field of View (FoV) |
29.2°×21.7° |
|
Output Interface |
Analog CVBS; |
|
Input Voltage |
5 V |
|
Operating Temperature Range |
-40°C to +80°C |
|
Dimensions |
32,5 × 28,5 × 34 mm |
|
Weight |
34 g |
*The USB interface is currently in testing and is supplied “as-is.” To obtain official integration support, please submit a request; we process requests on a first-come, first-served basis.
Package Contents
- 1× Thermal Imaging Camera
- 1× Connector Cable
