General Information

• Pixel Pitch: 12 μm
• Resolution: 640×512 pixels
• Field of View (FoV): 48.7°×38.6°
• Wavelength range: 8 ~ 14 μm
• Operating Temperature Range: -40°C to +80°C
• Output Interface: Analog CVBS; digital USB (UVC)*
• Input Voltage: 5 V

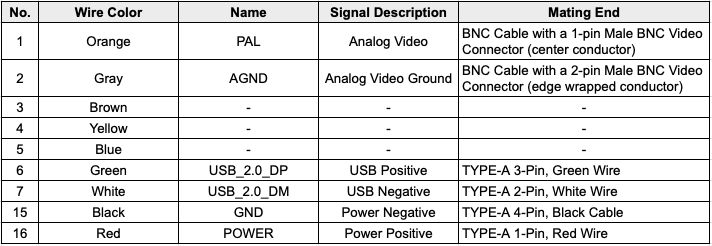

Wire Pinout

Connecting via Analog Video Interface

Connection scheme to the Vyriy airframe (example):
To connect the camera, solder wire No. 1 Orange (PAL) to the CAM pad, wire No. 15 Black (GND) to the G pad, and wire No. 16 Red (POWER) to the 5V pad. The remaining wires should be insulated.

Connecting via USB Interface

The USB connection guide for the camera can be viewed here; note that the USB interface is currently in the testing phase and is supplied “as-is.”

Camera Mounting on the Aircraft

The camera can be mounted in any desired way. For ease of installation, you may use the mounting option provided at the Kurbas Mount link, or adapt it to your needs. In this solution, the camera is secured with four M2 side screws.

Product Dimensional Drawing

If you need the exact dimensions of the camera housing or want to adapt it to your own requirements, use the STL files provided at the Kurbas-640 Body

FAQ

Frequently asked questions regarding diagnostics and troubleshooting of typical issues with the Kurbas-640 camera can be found at the FAQ link.
